UNO-2184G-D45E

內建 Intel I7-2655LE(2.2G),8GB DDR3內存, 2*RS-232/422/485,2*RS232;4*Giga LAN, 1*內部CFast, 6*外部USB2.0, DP/HDMI/ DVI-I, Audio out, 2*Mini-PCIe with 1*SIM card support, PCI-104 無風扇嵌入式控制器

購買電話：13581789724 010-82827893/39-8004   詳情請登陸：www.getck.com.cn

購買電話：13581789724 010-82827893/39-8004   詳情請登陸：www.getck.com.cn

購買電話：13581789724 010-82827893/39-8004   詳情請登陸：www.getck.com.cn

英特爾Core i7自動化電腦，帶4個千兆以太網接口，2個小型PCIe，DVI/DP/HDMI高清接口

主板英特爾賽揚847/807UE/酷睿i7-2655LE,1.1GHz/1.0GHz/2.2GHz 處理器

2個RS-232和2個RS-232/422/485自動數據流控制端口

2個10/100/1000Base-T以太網

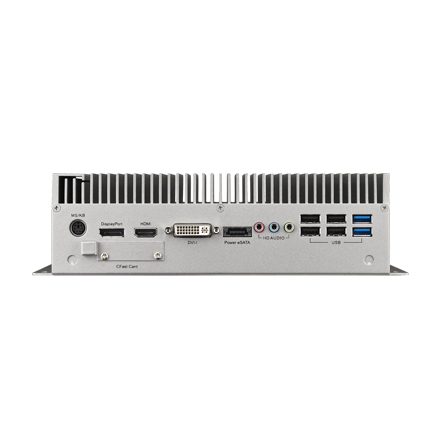

DVI-I, DP, HDMI支持2個獨立顯示器

音頻隨麥克風輸入，輸入線，輸出線

6個USB 2.0端口

支持2個PCI-104插件卡和子板擴展

Windows? WES 2009, WES 7，即用解決方案

可外接入Cfast插槽

內建系統狀態LED燈指示

支持局域網功能喚醒和啟動

支持Power eSATA

底盤和電力接地隔離

IP40 入口保護

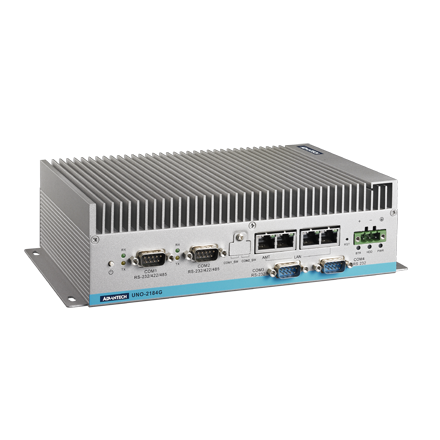

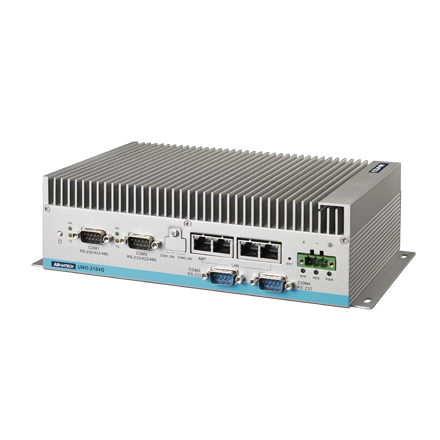

 UNO-2184G is an high-performance Intel 2nd generation Core i7-2655LE/847/807UE grade controllers that support PCI-104 with daughterboard expansion, 3 x display, 6 x USB, and 2 x Mini PCIe socket. They also feature WLAN, 3G expansion and compatibility with Windows 7. The 4 x Gigabit LANs on the UNO-2184G support teaming function with fault tolerance, link aggregation, and load balance features. The UNO-2184G is an high end computing platforms designed to support applications with tremendous data volume and 3D content.

規格

UNO-2184G-D45E

取得報價

UNO-2184G-D64E

取得報價

General

Power Consumption

Mounting

Certifications

Weight

OS Support

Power Requirement

System Design

Remote Management

Enclosure Housing

Dimensions

40 W (typical)

40 W (typical)

DIN-rail, Wallmount, VESA

DIN-rail, Wallmount, VESA

CE, UL, CCC, FCC, C-Tick, BSMI

CE, UL, CCC, FCC, C-Tick, BSMI

3.0 kg

3.0 kg

Windows XP/7, WES7, WES-2009, Linux

Windows XP/7, WES7, WES-2009, Linux

9 ~ 36 VDC (e.g +24V @ 3A) (Min. 72W), AT/ATX

9 ~ 36 VDC (e.g +24V @ 3A) (Min. 72W), AT/ATX

Fanless with no internal cabling (except COM3/COM4)

Fanless with no internal cabling (except COM3/COM4)

Built-in Advantech DiagAnywhere agent on WES2009 / WES7

Built-in Advantech DiagAnywhere agent on WES2009 / WES7

Aluminum

Aluminum

255 x 152 x 69 mm(10" x 6.0" x 2.7")

255 x 152 x 69 mm (10" x 6.0" x 2.7")

System Hardware

CPU

Memory

Storage

Keyboard/Mouse Ports

Audio

Display

Indicators

Mini PCIe Expansion

Intel Core i7-2655LE 2.2 GHz

Intel Core i7-3555LE 2.5GHz

8 GB DDR3 SDRAM built-in

4 GB DDR3 SDRAM built-in

CF: 1 x CFast slot, HDD: One built-in 2.5" SATA HDD bracket(Optional 2 x HDD Bracket Kit)

CF: 1 x CFast slot, HDD: One built-in 2.5" SATA HDD bracket(Optional 2 x HDD Bracket Kit)

1 x PS/2

1 x PS/2

Mic in, Line in, Line out

Mic in, Line in, Line out

1 x DVI-I, 1 x HDMI, 1 x DP (2 x independent displays)

1 x DVI-I, 1 x HDMI, 1 x DP (2 x independent displays)

LEDs for Power, battery, LAN (Active, Status) and Serial (Tx, Rx)

LEDs for Power, battery, LAN (Active, Status) and Serial (Tx, Rx)

2 x Mini PCIe slots with 1 x SIM card

2 x Mini PCIe slots with 1 x SIM card

I/O Interface

Serial Ports

LAN

USB

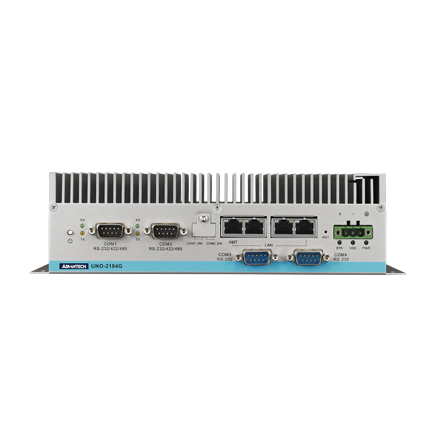

2 x RS-232, 2 x RS-232/422/485 with DB9 connectors Automatic RS-485 data flow control

2 x RS-232, 2 x RS-232/422/485 with DB9 connectors Automatic RS-485 data flow control

4 x 10/100/1000Base-T RJ-45 ports, Supports AMT (UNO-2184G only), wake on LAN and built-in boot ROM in flash BIOS

4 x 10/100/1000Base-T RJ-45 ports, Supports AMT (UNO-2184G only), wake on LAN and built-in boot ROM in flash BIOS

6 x USB (only UNO-2184G-D64E supports 2 x USB3.0)

6 x USB (only UNO-2184G-D64E supports 2 x USB3.0)

Environment

Temperature (Operating)

Temperature (Storage)

Humidity (Operating)

Vibration Protection

Shock Protection

-10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH. (with air flow)

-10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH. (with air flow)

-40 ~ 60°C (-40~140°F)

-40 ~ 60°C (-40~140°F)

95% @ 40°C (non-condensing)

95% @ 40°C (non-condensing)

IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.) HDD: 1 Grms @ 5 ~ 500 Hz

IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.) HDD: 1 Grms @ 5 ~ 500 Hz

IEC 60068-2-27, CompactFlash: 50 G @ wall mount, half sine, 11 ms, HDD: 20 G @ wall mount, half sine, 11 ms

IEC 60068-2-27, CompactFlash: 50 G @ wall mount, half sine, 11 ms, HDD: 20 G @ wall mount, half sine, 11 ms

Processor System

Watchdog Timer

Programmable 256 levels timer interval, from 1 to 255 sec

Programmable 256 levels timer interval, from 1 to 255 sec
