Specifications

CPU Intel Atom N2600 1.60GHz Chipset Intel NM10 System Memory DDR3 1066 SDRAM SODIMM x 1, Max.2GB Display Interface Mini HDMI x 1 Storage Device SSD: mSATA (Half-size) Network LAN: Gigabit Ethernet x 1 Wireless: Optional Front I/O USB Port: USB 2.0 x 4 Others: Power Button x 1, mini HDMI x 1 Rear I/O LAN: RJ-45 x 1 Serial Port: RJ-48 x 3 (RS-232 x 1 , RS-232/422/485 x 2) Others: Power input x 1 Expansion Onboard USB x 2 for Touch/WiFi Power Requirement DC-in 12V Power Consumption Intel Atom N2600 1.6GHz, 0.79A@+12V System Cooling Passive Mounting Wallmount/Din-rail Operating Temperature 32°F ~ 104°F (0°C ~ 40°C) w/o Airflow 32°F ~ 131°F (0°C ~ 50°C) w/ Airflow Storage Temperature -4°F ~ 158°F (-20°C ~ 70°C) Anti-Vibration 3g rms/ 5 ~ 500Hz/ operation – CFD 1g rms/ 5~ 500Hz/ operation – HDD Anti-Shock 50G peak acceleration (11 msec. duration) – CFD 20G peak acceleration (11 msec. duration) – HDD MTBF 50,000 Certification EMC: CE /FCC Class A Dimension (W x H x D) 4.92"(W) x 3.03"(H) x 0.79"(D) (125mm x 77mm x 20mm) Gross Weight 2.64 lb (1.2 Kg )     Ordering Information AEC-6401-A1-1010 Intel N2600, Max. 2GB RAM, LAN x 1, USB x 4, RS-232 x 1, RS-232/422/485 x 2, mSATA x 1 (Half-size), mini HDMI, Din Rail/ VESA 75/100 (Optional), 12V DC in, 0°C ~ 50°C ( with air ) AEC-6401-A2-1010 Intel N2600, Max. 2GB RAM, LAN x 1, USB x 4, RS-232 x 1, RS-232/422/485 x 2, mSATA x 1 (Half-size), mini HDMI, Wifi 802.11 b/g/n, Din Rail/ VESA 75/100 (optional), 12V DC in, 0°C ~ 50°C ( with air ) Optional Accessories M046401000 Anti-Heat Kit 1700090156 RJ-45 to COM Cable 1700190500 Mini HDMI to HDMI Cable 1757306007 Power Adapter 9741640100 VESA mounting kit  9741640101 DIN Rail mounting kit Packing List Anti-Heat Kit RJ-45 to COM Cable x 3 Mini HDMI to HDMI Cable Power Adapter CD-ROM for Manual (in PDF Format) and Drivers AEC-6401

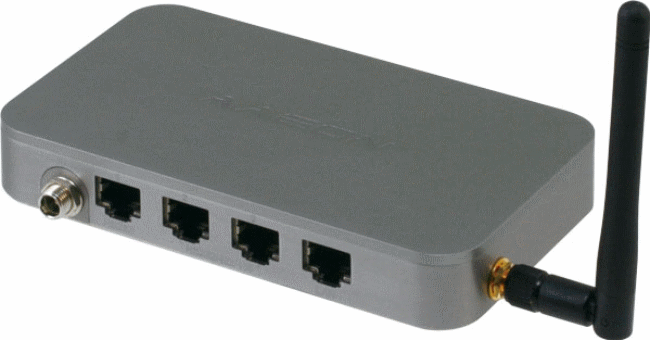

AEC-6401節能高效的小巧型嵌入式工控機
研揚科技，工業PC機的主要生產商新近發布一款節能高效的小巧型嵌入式控制器：AEC-6401，采用Intel? Atom? N2600 1.60GHz處理器和Intel? NM10芯片組。“作為全球最薄的無風扇嵌入式電腦之一，厚度僅20 mm，卻擁有強大的運算能力，非常適用于工廠自動化、環境監控、數字標牌、政府/公共安全以及車載計算機等有空間限制的行業，” 研揚平板電腦事業群產品經理李友翔說道。

      工廠/機器自動化、數字標牌、家庭自動化及環境監控領域的系統集成商們都十分欣賞這款機器的高效設計，它支持高達2GB的DDR31066 SDRAM內存、1個12V DC電源輸入、4個USB2.0和1個千兆以太網，1個RS-232 和2個RS-232/422/485連接可通過RJ-45接口完成。另可選無線網絡。防震鋁外殼也頗具吸引力，且重量輕，大小僅有125mm x 77mm ，在惡劣的環境下可提供強大的元件保護。工作溫度在-20°C?50°C （-4°F?122°F）之間，采用被動式散熱。

      AEC-6401具有豐富的數據采集功能，通過mini-SATA可連結固態硬盤而達到高速數據存儲功能，通過mini HDMI可實現數據分析或高清多媒體信息輸出。安裝方面，通過Din-Rail和標準VESA安裝，AEC-6401可輕松安裝在現今任何一種面板上。
